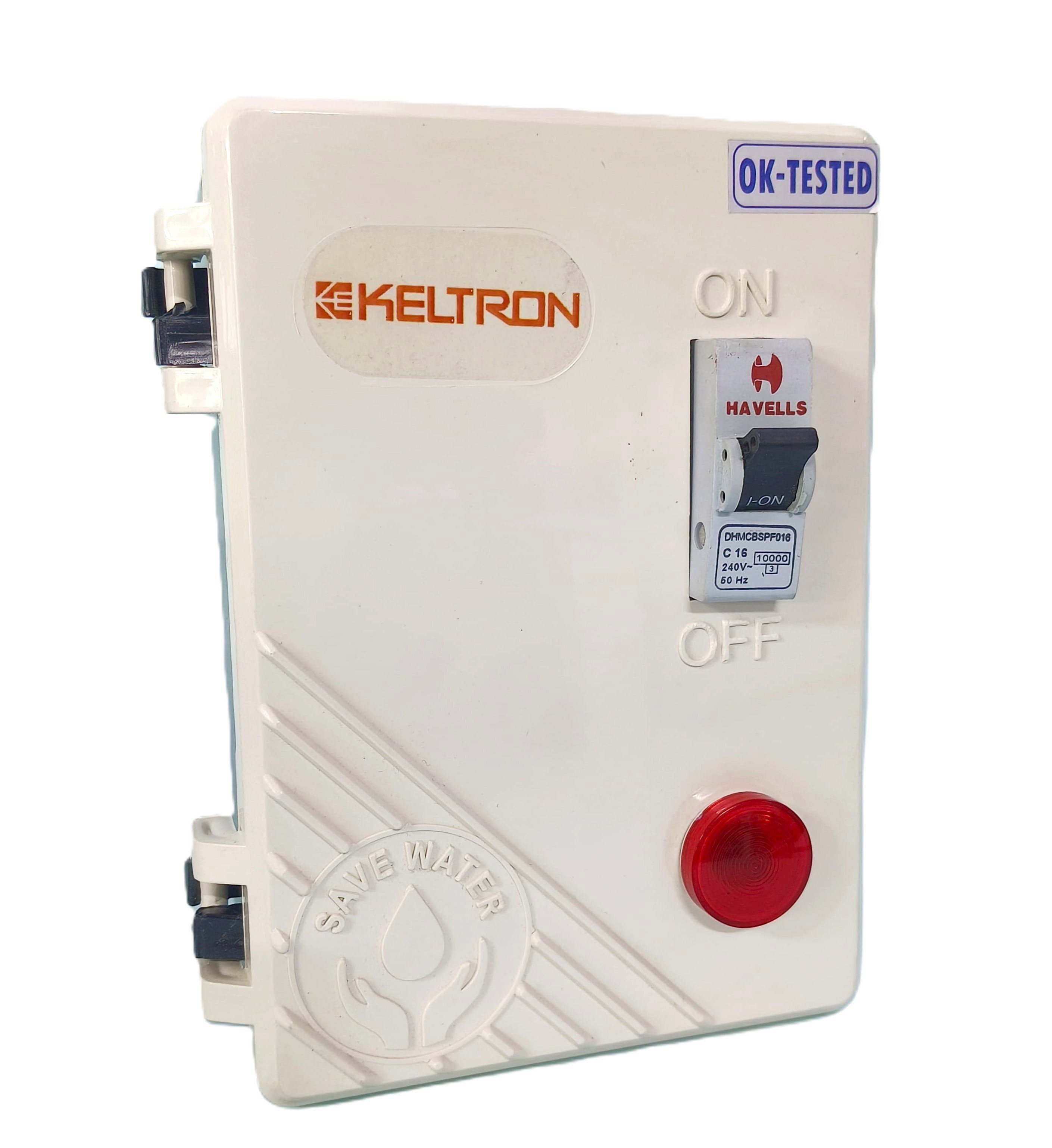

SINGLE PHASE PUMP CONTROL PANEL
AQUA-B SERIES
This product is for controlling the water pumps in open well and contains motor start capacitor circuitry. The newly designed water pump control panel box ensures efficient control of pump operations with enhanced safety features. It is compact, user friendly, and suitable for single phase open well pump systems.
| SPECIFICATION | DETAILS |
| Product Type | Single-Phase Control Panel for Open-Well Pump |
| Model | AQUA- B SERIES |
| Voltage | 230 VAC/50 HZ |
| Application | For Household Purpose, Commercial Building, Farms etc... |
| Dimension (in cms) | 17(L) x 13(W) x 6.5(H) |
| Weight | 0.5 kg |
| AQUA- B SERIES | |||||
| Model | B25 | B30 | B50 | B60 | B72 |
| Power Range | 0.5 HP | 0.75 HP | 1 HP | 1.5 HP | 2 HP |
| Running Capacitor | 25 µF | 30 µF | 50 µF | 60 µF | 72 µF |
| MCB | 10 A | 10 A | 16 A | 16 A | 20 A |
